Give memory to your API: Build a complete CRUD with DynamoDB and CDK

In the previous articles, we gradually introduced you to serverless, starting with the creation and deployment of a Lambda function in the first article, followed by the addition of an API Gateway to trigger the Lambda in the second article. In both cases, the returned data consisted of simple mock responses. You have therefore acquired a solid foundation to move on to the next level: data persistence. As stated in the title, we will use DynamoDB and remain within the same approach: the discovery of AWS CDK.

Goal

Based on the previous tutorials, we will create: A DynamoDB table for storing our tasks in the database.

GET /tasks —-> A route for retrieving tasks from the database.
POST /tasks —-> A route for save tasks in database
PUT /tasks/:id —> A route for updating the information of a task.
DELETE /tasks/:id —> A route for deleting a task.

CThis API encompasses the essential elements for creating modern, robust, and scalable applications.

Prerequisites

Before getting started, it is recommended that:

You have read the articles:
1. Hello World Serverless : Deploy an AWS Lambda Function with CDK and TypeScript
2. Build your first serverless API with API Gateway and Lambda function using CDK and TypeScript

1. Initialize the CDK project

Create a folder for your project:

BASH

mkdir serverless-rest-api-demo
cd serverless-rest-api-demo
Click to expand and view more

Initialize a TypeScript CDK project:

BASH

cdk init app --language typescript
Click to expand and view more

CDK creates the following structure:

PGSQL

/bin
/lib
cdk.json
tsconfig.json
package.json

Click to expand and view more

2. Creating the DynamoDB table

In our file /lib/serverless-rest-api-demo-stack.ts let’s declare our Tasks Table

TS

import * as cdk from 'aws-cdk-lib/core';
import { Construct } from 'constructs';
import * as dynamodb from 'aws-cdk-lib/aws-dynamodb';


export class ServerlessRestApiDemoStack extends cdk.Stack {
  constructor(scope: Construct, id: string, props?: cdk.StackProps) {
    super(scope, id, props);

    const tasksTable = new dynamodb.Table(this, 'TasksTable', {
      partitionKey: { name: 'taskId', type: dynamodb.AttributeType.STRING },
      tableName: 'Tasks',
      removalPolicy: cdk.RemovalPolicy.DESTROY, // NOT recommended for production code
      billingMode: dynamodb.BillingMode.PAY_PER_REQUEST
    });
  }
}
Click to expand and view more

In this section of our CDK Stack, we define our storage table. Here are the details of what each line of code does:

partitionKey: This serves as the unique identifier for each task. In DynamoDB, a partition key is required. Here, we have chosen taskId of type STRING. This key allows us to retrieve, update, or delete a specific task.
tableName: 'Tasks': We give our DynamoDB table a name so that it can be easily identified in the AWS console.
removalPolicy: cdk.RemovalPolicy.DESTROY: ** Note: This is for tutorial purposes only!** By default, AWS retains your tables even if you delete your CDK stack (to prevent accidental data loss). Here, we explicitly instruct AWS to delete the table along with the stack to avoid paying for unused resources after your tests.
billingMode: dynamodb.BillingMode.PAY_PER_REQUEST: This is the billing mode. Instead of paying a monthly fee, you only pay when you read or write data. For beginners or small projects, this is the most cost-effective option.

3. Create the Lambda functions

Ceate a /lambda/ folder and the following files:

create-tasks.ts
get-task.ts
delete-task.ts
list-tasks.ts

Warning

Let’s install the packages that will make it easier to interact with our DynamoDB table and generate IDs.

npm install @aws-sdk/lib-dynamodb
npm install uuid
Click to expand and view more

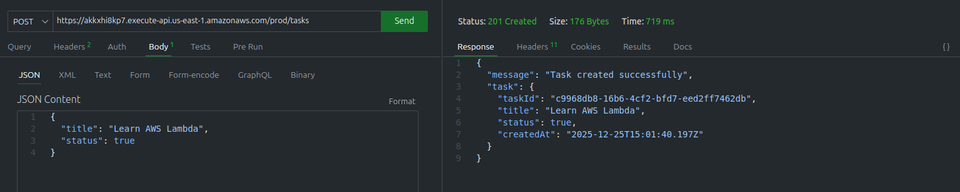

1. Creating a task

TS

import { DynamoDBClient } from "@aws-sdk/client-dynamodb";
import { PutCommand ,DynamoDBDocumentClient} from "@aws-sdk/lib-dynamodb";
import { v4 as uuidv4 } from 'uuid';

const client= new DynamoDBClient({});
const docClient =  DynamoDBDocumentClient.from(client);
const TABLE_NAME = process.env.TABLE_NAME || 'Tasks';

export const handler = async (event: any) => {
    const requestBody = JSON.parse(event.body);

    const taskItem = {
        taskId: uuidv4(),
        title: requestBody.title,
        taskStatus: requestBody.taskStatus,
        createdAt: new Date().toISOString()
    };

    try {
        await docClient.send(new PutCommand({
            TableName: TABLE_NAME,
            Item: taskItem
        }));

        return {
            statusCode: 201,
            body: JSON.stringify({ message: 'Task created successfully', task: taskItem })
        };
    } catch (error) {
        console.error('Error creating task:', error);
        return {
            statusCode: 500,
            body: JSON.stringify({ message: 'Failed to create task' })
        };
    }
}
Click to expand and view more

Client initialization: We set up the connection to DynamoDB using the DynamoDBDocumentClient
Preparing the data :
- We convert the received text (event.body) into a usable object.
- OWe generate a unique ID (uuid4) so that each task is properly identified.
- We add an automatic creation date.
**Saving (PutCommand): We send the taskItem object to the DynamoDB table. This is the actual write operation.
API response:
- Success (201): We confirm to the client that the task has been created with its new ID.
- Failure (500): We catch the error if something goes wrong (e.g., a permissions issue) to prevent the API from crashing without explanation.

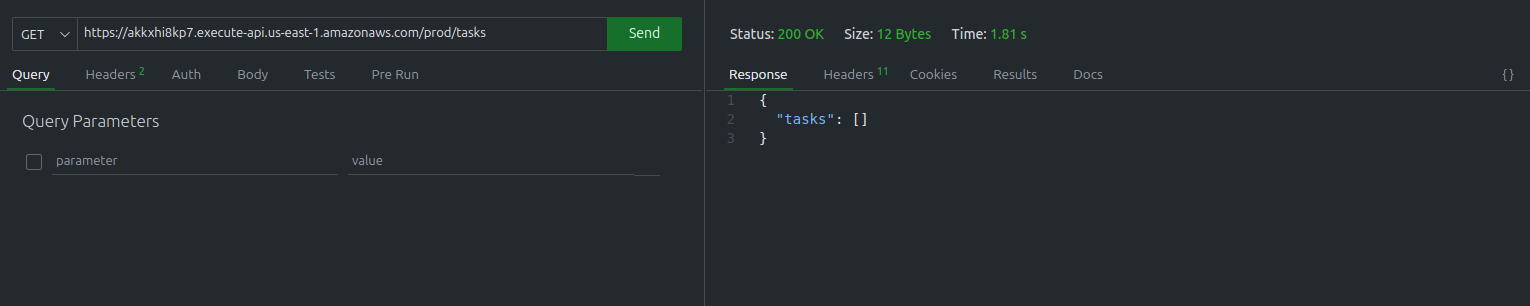

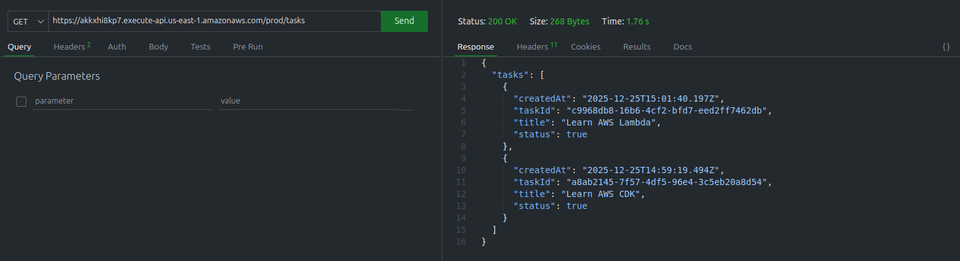

2. Tasks’s List

TS

import { DynamoDBClient, ScanCommand } from "@aws-sdk/client-dynamodb";
import {  DynamoDBDocumentClient} from "@aws-sdk/lib-dynamodb";


const client= new DynamoDBClient({});
const docClient =  DynamoDBDocumentClient.from(client);
const TABLE_NAME = process.env.TABLE_NAME || 'Tasks';

export const handler = async (event: any) => {
   try {
       // Scan the DynamoDB table to get all tasks
       const data= await docClient.send( new ScanCommand({
           TableName: TABLE_NAME
       }));

       return {
           statusCode: 200,
           body: JSON.stringify({ tasks: data.Items })
       };
   } catch (error) {
       console.error('Error listing tasks:', error);
       return {
           statusCode: 500,
           body: JSON.stringify({ message: 'Failed to list tasks' })
       };
   }
}
Click to expand and view more

Code explanation: Listing all tasks This function acts as an inventory of your database:

ScanCommand: This is the instruction that tells DynamoDB to read the entire table. It is the most direct method to retrieve all the data at once.
data.Items: The result of the scan contains an array called Items. This is where all our tasks are stored (ID, title, status, etc.).
Error handling: If the table is inaccessible or if the name is incorrect.

Warning

The Scan command is ideal for learning purposes and for small tables. However, keep in mind that it scans each item in the table one by one. We will see later that there is a more efficient command, Query.

3. Retrieving a task

TS

// code for lambda/get-task.ts
import { DynamoDBClient } from "@aws-sdk/client-dynamodb";
import { DynamoDBDocumentClient ,GetCommand} from "@aws-sdk/lib-dynamodb";

const client = new DynamoDBClient({});
const docClient = DynamoDBDocumentClient.from(client);
const TABLE_NAME = process.env.TABLE_NAME || 'Tasks';

export const handler = async (event: any) => {
    const taskId = event.pathParameters?.taskId;

    if (!taskId) {
        return {
            statusCode: 400,
            body: JSON.stringify({ message: 'Task ID is required' })
        };
    }

    try {
        const data = await docClient.send(new GetCommand({
            TableName: TABLE_NAME,
            Key: { taskId }
        }));

        if (!data.Item) {
            return {
                statusCode: 404,
                body: JSON.stringify({ message: 'Task not found' })
            };
        }

        return {
            statusCode: 200,
            body: JSON.stringify({ task: data.Item })
        };
    } catch (error) {
        console.error('Error getting task:', error);
        return {
            statusCode: 500,
            body: JSON.stringify({ message: 'Failed to get task' })
        };
    }
}
Click to expand and view more

This function allows us to retrieve a specific item from our database

ID extraction: The code retrieves the taskId directly from the URL using event.pathParameters.
Input validation: If the ID is missing, we immediately return a 400 error (Bad Request).
GetCommand: This is the fastest and least expensive command in DynamoDB. It directly retrieves the item using its unique key.
Existence check: If DynamoDB finds nothing, it returns an empty object. The code checks the contents of data.Item to return a 404 response (Not Found), which is the standard behavior for a well-designed REST API.

3. Deleting task

TS

// code for lambda/delete-task.ts
import { DynamoDBClient } from "@aws-sdk/client-dynamodb";
import { DynamoDBDocumentClient, DeleteCommand } from "@aws-sdk/lib-dynamodb";

const client = new DynamoDBClient({});
const docClient = DynamoDBDocumentClient.from(client);
const TABLE_NAME = process.env.TABLE_NAME || 'Tasks';

export const handler = async (event: any) => {
    const taskId = event.pathParameters?.taskId;

    if (!taskId) {
        return {
            statusCode: 400,
            body: JSON.stringify({ message: 'Task ID is required' })
        };
    }

    try {
        await docClient.send(new DeleteCommand({
            TableName: TABLE_NAME,
            Key: { taskId }
        }));

        return {
            statusCode: 200,
            body: JSON.stringify({ message: 'Task deleted successfully' })
        };
    } catch (error) {
        console.error('Error deleting task:', error);
        return {
            statusCode: 500,
            body: JSON.stringify({ message: 'Failed to delete task' })
        };
    }
}
Click to expand and view more

Explanation Deletion is the final action in our data cycle. It is very similar to retrieving (Get), but with a different purpose.

Identification: As with Get, we extract the taskId from the URL parameters. This acts as a safety key to ensure we delete the correct item.
DeleteCommand: This command instructs DynamoDB to permanently remove the item associated with the provided key.
Resilience: If you attempt to delete an ID that does not exist, the command will still succeed without an error. This is known as an idempotent operation.
Confirmation: We return a success message to confirm to the user that the action has been successfully processed.

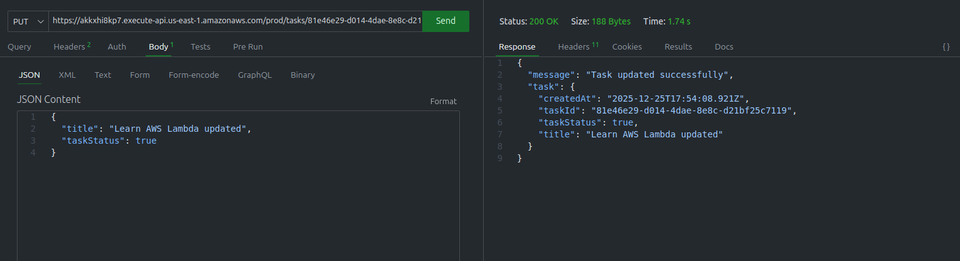

4. Dynamic Update

TS

// code for lambda/update-task.ts
import { DynamoDBClient } from "@aws-sdk/client-dynamodb";
import { DynamoDBDocumentClient, UpdateCommand } from "@aws-sdk/lib-dynamodb";

const client = new DynamoDBClient({});
const docClient = DynamoDBDocumentClient.from(client);
const TABLE_NAME = process.env.TABLE_NAME || 'Tasks';

export const handler = async (event: any) => {
    const taskId = event.pathParameters?.taskId;
    const requestBody = JSON.parse(event.body);

    if (!taskId) {
        return {
            statusCode: 400,
            body: JSON.stringify({ message: 'Task ID is required' })
        };
    }

    const updateExpressionParts = [];
    const expressionAttributeValues: any = {};

    if (requestBody.title) {
        updateExpressionParts.push('title = :title');
        expressionAttributeValues[':title'] = requestBody.title;
    }

    if (requestBody.taskStatus) {
        updateExpressionParts.push('taskStatus = :taskStatus');
        expressionAttributeValues[':taskStatus'] = requestBody.taskStatus;
    }

    if (updateExpressionParts.length === 0) {
        return {
            statusCode: 400,
            body: JSON.stringify({ message: 'No valid fields to update' })
        };
    }

    const updateExpression = 'SET ' + updateExpressionParts.join(', ');

    try {
        const data = await docClient.send(new UpdateCommand({
            TableName: TABLE_NAME,
            Key: { taskId },
            UpdateExpression: updateExpression,
            ExpressionAttributeValues: expressionAttributeValues,
            ReturnValues: 'ALL_NEW'
        }));

        return {
            statusCode: 200,
            body: JSON.stringify({ message: 'Task updated successfully', task: data.Attributes })
        };
    } catch (error) {
        console.error('Error updating task:', error);
        return {
            statusCode: 500,
            body: JSON.stringify({ message: 'Failed to update task' })
        };
    }
}
Click to expand and view more

Explanation Unlike PutCommand, which replaces the entire object, UpdateCommand allows you to modify only the fields provided by the users (such as the title, the status, or both).

Dynamic construction: The code checks what is present in the requestBody. If only the title is provided, it updates only the title. This prevents accidentally overwriting other data.
UpdateExpression: It’s a small “magic” statement (e.g., SET title = :title) that tells DynamoDB exactly what to modify.
ExpressionAttributeValues: For security reasons, we do not place the values directly in the statement. Instead, we use “aliases” (like :title) to safely inject the data.
ReturnValues: 'ALL_NEW': It asks DynamoDB to return the object after the modification.

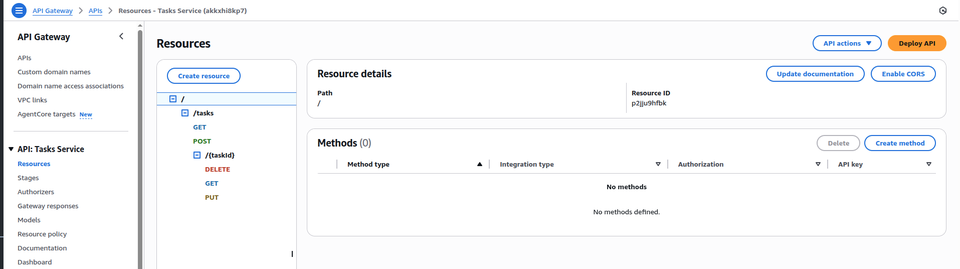

4. Creating routes

In this section, we will create our API Gateway and associate each Lambda function with a specific route.

TS

import * as cdk from 'aws-cdk-lib/core';
import { Construct } from 'constructs';
import * as dynamodb from 'aws-cdk-lib/aws-dynamodb';
import * as apiGateway from 'aws-cdk-lib/aws-apigateway';
import* as lambdaNodejs from 'aws-cdk-lib/aws-lambda-nodejs';

export class ServerlessRestApiDemoStack extends cdk.Stack {
  constructor(scope: Construct, id: string, props?: cdk.StackProps) {
    super(scope, id, props);

    const tasksTable = new dynamodb.Table(this, 'TasksTable', {
      partitionKey: { name: 'taskId', type: dynamodb.AttributeType.STRING },
      tableName: 'Tasks',
      removalPolicy: cdk.RemovalPolicy.DESTROY, // NOT recommended for production code
      billingMode: dynamodb.BillingMode.PAY_PER_REQUEST
    });

    // Lambda function to create a task
    const createTaskFunction = new lambdaNodejs.NodejsFunction(this, 'CreateTaskFunction', {
      entry: 'lambda/create-task.ts',
      handler: 'handler',
      functionName: 'CreateTaskFunction',
      environment: {
        TABLE_NAME: tasksTable.tableName
      }
    });

    // Grant the Lambda function permissions to write to the DynamoDB table
    tasksTable.grantWriteData(createTaskFunction);

    // Lambda function to list tasks
    const listTasksFunction = new lambdaNodejs.NodejsFunction(this, 'ListTasksFunction', {
      entry: 'lambda/list-tasks.ts',
      handler: 'handler',
      functionName: 'ListTasksFunction',
      environment: {
        TABLE_NAME: tasksTable.tableName
      }
    });

    // Grant the Lambda function permissions to read from the DynamoDB table
    tasksTable.grantReadData(listTasksFunction);

    // Lambda function to get a single task
    const getTaskFunction = new lambdaNodejs.NodejsFunction(this, 'GetTaskFunction', {
      entry: 'lambda/get-task.ts',
      handler: 'handler',
      functionName: 'GetTaskFunction',
      environment: {
        TABLE_NAME: tasksTable.tableName
      }
    });

    // Grant the Lambda function permissions to read from the DynamoDB table
    tasksTable.grantReadData(getTaskFunction);

    // Lambda function to delete a task
    const deleteTaskFunction = new lambdaNodejs.NodejsFunction(this, 'DeleteTaskFunction', {
      entry: 'lambda/delete-task.ts',
      handler: 'handler',
      functionName: 'DeleteTaskFunction',
      environment: {
        TABLE_NAME: tasksTable.tableName
      }
    });

    // Grant the Lambda function permissions to delete from the DynamoDB table
    tasksTable.grantWriteData(deleteTaskFunction);

    // Lambda function to update a task
    const updateTaskFunction = new lambdaNodejs.NodejsFunction(this, 'UpdateTaskFunction', {
      entry: 'lambda/update-task.ts',
      handler: 'handler',
      functionName: 'UpdateTaskFunction',
      environment: {
        TABLE_NAME: tasksTable.tableName
      }
    });

    // Grant the Lambda function permissions to update the DynamoDB table
    tasksTable.grantWriteData(updateTaskFunction);

    // create Api Gateway and Lambda functions here
    const api = new apiGateway.RestApi(this, 'TasksApi', {
      restApiName: 'Tasks Service',
      description: 'This service serves tasks.'
    });
    // create tasks resource
    const tasks = api.root.addResource('tasks');

    // POST /tasks - create a new task
    tasks.addMethod('POST', new apiGateway.LambdaIntegration(createTaskFunction));

    // GET /tasks - list all tasks
    tasks.addMethod('GET', new apiGateway.LambdaIntegration(listTasksFunction));

    // /tasks/{taskId} resource
    const singleTask = tasks.addResource('{taskId}');

    // GET /tasks/{taskId} - get a single task
    singleTask.addMethod('GET', new apiGateway.LambdaIntegration(getTaskFunction));

    // DELETE /tasks/{taskId} - delete a task
    singleTask.addMethod('DELETE', new apiGateway.LambdaIntegration(deleteTaskFunction));

    // PUT /tasks/{taskId} - update a task
    singleTask.addMethod('PUT', new apiGateway.LambdaIntegration(updateTaskFunction));

    // Output the API endpoint URL
    new cdk.CfnOutput(this, 'ApiUrl', {
      value: api.url,
      description: 'The URL of the Tasks API'
    });
  }
}
Click to expand and view more

Explanation: As a new feature here, we have

TS

 // Lambda function to create a task
    const createTaskFunction = new lambdaNodejs.NodejsFunction(this, 'CreateTaskFunction', {
      entry: 'lambda/create-task.ts',
      handler: 'handler',
      functionName: 'CreateTaskFunction',
      environment: {
        TABLE_NAME: tasksTable.tableName
      }
    });

    // Grant the Lambda function permissions to write to the DynamoDB table
    tasksTable.grantWriteData(createTaskFunction);
Click to expand and view more

environment In the Lambda function definition, we add an environment variable TABLE_NAME to our function, which is then accessed in the code using const TABLE_NAME = process.env.TABLE_NAME.
tasksTable.grantWriteData(createTaskFunction); Give the Lambda function the necessary permissions to write to the DynamoDB table.

Summary whe have

Created Lambda functions :createTaskFunction, listTasksFunction ,getTaskFunction,updateTaskFunction et deleteTaskFunction
Created the API Gateway :api
Created routes: /tasks et /tasks/{taskId}, association aux lambdas
Created the DynamoDB table

Warning

Execute cmd npm install -D esbuild esbuild helps with transpiling TypeScript to JavaScript; otherwise, a Docker image would be used for transpilation, which would make the deployment longer

5. Déployer la Lambda

before deploy:

SH

cdk bootstrap
cdk synth

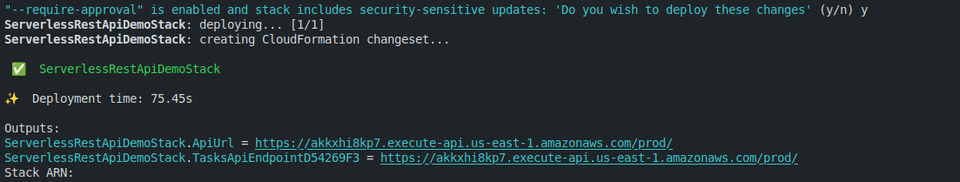

cdk deploy
Click to expand and view more

5. Testing functions

After deployment, the console provides a link to invoke the Lambda functions.

Go to the AWS console to explore the API Gateway resource.

Test using tools like Postman

List all tasks (initially, it is empty).

Add task
List all tasks
Get Task
Update Task
Delete Task

6. Clean Up

cdk destroy
Click to expand and view more

This deletes the Lambda functions, the API Gateway resources, and the DynamoDB table.

Conclusion

In this article, we have :

Created an AWS CDK project in TypeScript
Created our Lambda functions
Created our REST API
Connected our endpoints to the Lambda functions
Deployed our CDK stack
Tested our API
Code Gitlab

DynamoDB is the key data storage service for serverless applications. In this article, it is important to note that we have only covered its basic usage. To learn more, I encourage you to check out the official documentation.

The next step in our journey will be the deployment of a static website. Since we have created a REST API, it is now time to deploy an Angular or React application to interact with our REST API.

Give memory to your API: Build a complete CRUD with DynamoDB and CDK

Give memory to your API: Build a complete CRUD with DynamoDB and CDK

Goal

Prerequisites

1. Initialize the CDK project

2. Creating the DynamoDB table

3. Create the Lambda functions

Warning

1. Creating a task

2. Tasks’s List

Warning

3. Retrieving a task

3. Deleting task

4. Dynamic Update

4. Creating routes

Warning

5. Déployer la Lambda

5. Testing functions

6. Clean Up

Conclusion

DynamoDB is the key data storage service for serverless applications. In this article, it is important to note that we have only covered its basic usage. To learn more, I encourage you to check out the official documentation.

Comments

Table of Contents

Give memory to your API: Build a complete CRUD with DynamoDB and CDK

Goal

Prerequisites

1. Initialize the CDK project

2. Creating the DynamoDB table

3. Create the Lambda functions

Warning

1. Creating a task

2. Tasks’s List

Warning

3. Retrieving a task

3. Deleting task

4. Dynamic Update

4. Creating routes

Warning

5. Déployer la Lambda

5. Testing functions

6. Clean Up

Conclusion

DynamoDB is the key data storage service for serverless applications. In this article, it is important to note that we have only covered its basic usage. To learn more, I encourage you to check out the official documentation.

Related Posts

Build your first serverless API with API Gateway and Lambda function using CDK and TypeScript

Hello World Serverless : Deploy an AWS Lambda Function with CDK and TypeScript

Comments

Start searching

No results found
