Build your first serverless API with API Gateway and Lambda function using CDK and TypeScript

Serverless is one of the most powerful approaches for building fast ,scalable and cost effective applications . In this article, I will walk you through building a simple API with two endpoints in under 10 minutes . We will leverage AWS lambda and Amazon API Gateway, deploying the entire infrastructure using AWS CDK with TypeScript.

This Api serves as a robust foundation for your serverless projects or compelling way to showcase your expertise.

Prerequisites

Before getting started,ensure you to have the following:

• Node.js ( LTS versions recommended)
• AWS CLI configured with appropriate credentials:

aws configure

• AWS CDK CLI installed globally

npm install -g aws-cdk

• An active AWS account

1. Initialize The CDK project

First, create a dedicated directory for your project and navigate into it:

mkdir serverless-api-demo
cd serverless-api-demo

Then ,initialize a new CDK app using TypeScript:

cdk init app --language typescript

CDK will generate the following project structure:

• /bin ————–> The entry point of the CDK application

• /lib ————–> Where your stack definitions reside

• cdk.json ————-> The CDK configuration file, defining how the toolkit interacts with your app

• tsconfig.json ——–> The TypeScript configuration for the project

• package.json ——–> Defines your project dependencies and scripts

2. Create the Lambda Function

Next we need to write the business logic for our API. Create a /lambda directory at root of your project and add the file named hello.ts.

mkdir lambda
touch lambda/hello.ts

Add the following snippet to your hello.ts file

//lambda/hello.ts

//hello fonction
export const helloFunction = async()=> {
    return {
        statusCode: 200,
        body: JSON.stringify({message: "hello world from aws lambda "}),
    }
};


// get users fonction
export const getUsersFunction = async()=>{
    const users = [
        {
            id : 1,
            name: "lonfo"
        },
        {
            id : 2,
            name : "ainix"
        },
        {
            id : 3,
            name: "pascal"
        }
    ];

    return {
        statusCode: 200,
        body: JSON.stringify( users),
    };
}

This file contains the logic for our two Lambda handlers : helloFunction and getUsersFunction

3. Define the lambda functions in CDK

Now open the lib/serverless-api-demo-stack.ts file and replace its content with the following code to provision our resources:

import * as cdk from 'aws-cdk-lib/core';
import { Construct } from 'constructs';
import * as nodeJsLambda from 'aws-cdk-lib/aws-lambda-nodejs';
import * as apigateway from 'aws-cdk-lib/aws-apigateway';

export class ServerlessApiDemoStack extends cdk.Stack {
  constructor(scope: Construct, id: string, props?: cdk.StackProps) {
    super(scope, id, props);

    // Hello Lambda Function
    const helloLambda = new nodeJsLambda.NodejsFunction(this, 'HelloHandler', {
      entry: 'lambda/hello.ts',
      handler: 'helloFunction',
      functionName: 'helloFunction',
    });

    // Get Users Lambda Function
    const getUsersLambda = new nodeJsLambda.NodejsFunction(this, 'GetUsersHandler', {
      entry: 'lambda/hello.ts',
      handler: 'getUsersFunction',
      functionName: 'getUsersFunction',
    });

    // create API Gateway and integrate with Lambda functions

    const api = new apigateway.RestApi(this, 'ServerlessApiDemoApi', {
      restApiName: 'Serverless API Demo Service',
    });

    // Hello endpoint
    const helloIntegration = new apigateway.LambdaIntegration(helloLambda);
    api.root.addResource('hello').addMethod('GET', helloIntegration);

    // Get Users endpoint
    const getUsersIntegration = new apigateway.LambdaIntegration(getUsersLambda);
    api.root.addResource('users').addMethod('GET', getUsersIntegration);
  }
}

Summary of the infrastructure:

• Lambda functions : definition of helloLambda and getUsersLambda
• API Gateway: creation of a REST API instance named api
• Route & integration Creation of the /hello and /users resources, mapping them to their respective Lambda function as event triggers

4. Deploy the infrastructure

Before deploying execute:

cdk bootstrap
cdk synth

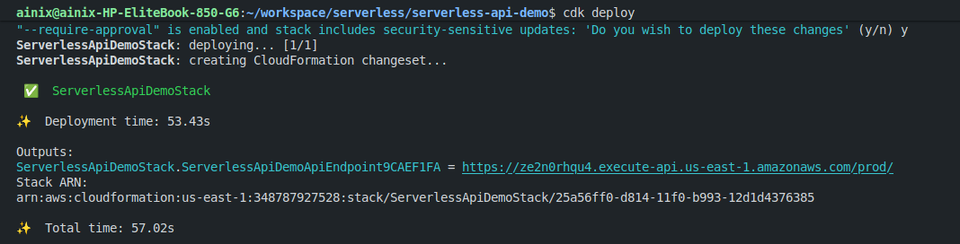

cdk deploy

5. Testing the API

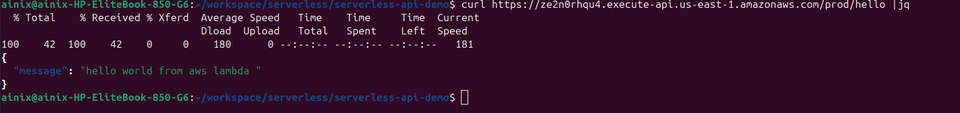

Once the deployment is complete, the terminal wotll display the output section,containing the API gateway endpoint URL. You can use this base URL to call your lambda function.

// replace  xxxxxxxxxxx with the data contained in your URL

curl https://xxxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/hello |jq

curl https://xxxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/users |jq

6. Clean-Up

to avoid any unexpected charges on your aws account, make sure to delete the resources created during this tutorial . You can easily tear down the entire stack using the following command

cdk destroy
