Angular Deployment on AWS: The Ultimate S3 + CloudFront Guide with CDK

Deploying an Angular Single Page Application (SPA) on AWS doesn’t have to be complicated. Forget manual console configuration; we are going to build a Serverless infrastructure, secured by OAC and optimized by CloudFront, all without depending on Route 53.

Tutorial Objectives

Organize a global project structure (Frontend + Infra).
Create a private S3 bucket for storage.
CConfigure CloudFront for HTTPS and Angular routing.
Deploy everything with a single command.

Prerequisites

Before starting, you will need:

Node.js
Configured AWS CLI:

BASH

aws configure
Click to expand and view more

AWS CDK installed::

BASH

npm install -g aws-cdk
Click to expand and view more

An active AWS account
Angular CLI installed

1. Project Structure

For clean management, we will group the application and the infrastructure into a single root folder. This “Monorepo” approach is a best practice.

SQL

/host-anglar-app
├── /frontend          --------------> Application Angular
└── /infrastructure    --------------> Code AWS CDK
Click to expand and view more

Create the folders and the Frontend

SH

mkdir host-anglar-app && cd host-anglar-app
# creation de l'application angular
ng new frontend
Click to expand and view more

Initialize the Infrastructure

SH

mkdir infrastructure && cd infrastructure
# Initialisation du CDK
cdk init app --language typescript
Click to expand and view more

2. Le code de l’Infrastructure (CDK)

Open infrastructure/lib/infrastructure-stack.ts. This script creates the S3 bucket and the CloudFront distribution. It also automatically handles security so that only CloudFront can access your S3 files.

TS

import * as cdk from 'aws-cdk-lib/core';
import { Construct } from 'constructs';
import * as s3 from 'aws-cdk-lib/aws-s3';
import * as cloudfront from 'aws-cdk-lib/aws-cloudfront';
import * as s3deploy from 'aws-cdk-lib/aws-s3-deployment';
import * as origins from 'aws-cdk-lib/aws-cloudfront-origins';


export class InfrastructureStack extends cdk.Stack {
  constructor(scope: Construct, id: string, props?: cdk.StackProps) {
    super(scope, id, props);
    // S3 bucket to host the Angular app
    const bucket = new s3.Bucket(this, "AngularAppBucket", {
      removalPolicy: cdk.RemovalPolicy.DESTROY,
      autoDeleteObjects: true,
      blockPublicAccess: s3.BlockPublicAccess.BLOCK_ALL,
      bucketName: 'angular-app-bucket-example-123456' // Change to a globally unique name
    });

    // CloudFront distribution to serve the Angular app
    const distribution = new cloudfront.Distribution(this, "AngularAppDistribution", {
      defaultBehavior: {
        origin: origins.S3BucketOrigin.withOriginAccessControl(bucket),
        viewerProtocolPolicy: cloudfront.ViewerProtocolPolicy.REDIRECT_TO_HTTPS,
      },
      defaultRootObject: "index.html",
      // Ajoutez ceci pour gérer le rafraîchissement des pages Angular
      errorResponses: [
        {
          httpStatus: 403,
          responseHttpStatus: 200,
          responsePagePath: '/index.html',
        },
      ],
    });

    // Deploy the Angular app to the S3 bucket
    new s3deploy.BucketDeployment(this, "DeployAngularApp", {
      sources: [s3deploy.Source.asset("../frontend/dist/frontend/browser")],
      destinationBucket: bucket,
      distribution,
      distributionPaths: ["/*"],
    });

    // Output the CloudFront distribution domain name
    new cdk.CfnOutput(this, "DistributionDomainName", {
      value: distribution.domainName,
    });

  }
}
Click to expand and view more

3. One-Click Deployment

To automate the build and deployment, we will create a custom command. In the infrastructure folder, we add a script to package.json:

JSON


  "deploy:all": "cd frontend && ng build && cd ../infrastructure && cdk deploy"
Click to expand and view more

Now, a single command is enough:

BASH

npm run deploy:all
Click to expand and view more

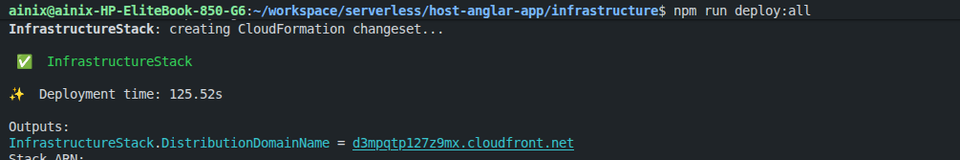

The output will provide the CloudFront URL to access your application: https://xxxxxxxxxxx.cloudfront.net/

4. Pointing your domain (Without Route 53) - Bonus

If you already have a domain with OVH, GoDaddy, or another provider, simply create a CNAME record:

Name: www (or your sub-domain)
Value: d123.cloudfront.net (the URL obtained previously)

Important

For HTTPS with your own domain, you will need to create a certificate in AWS Certificate Manager (ACM). However, for starters, the default CloudFront URL works perfectly in HTTPS.

5.Nettoyer

To stop incurring costs once your tests are finished:

cdk destroy
Click to expand and view more

Conclusion In this article, we have:

Created and configured a private and secure S3 storage.
Configured a CloudFront CDN for global performance.
projet gitlab front
projet gitlab infrastructure

our interface is ready, but how do you manage your users? In the next article, we will explore how to integrate AWS Cognito to add a robust authentication layer (Sign-up, Login, Password Recovery) to your Angular application.
